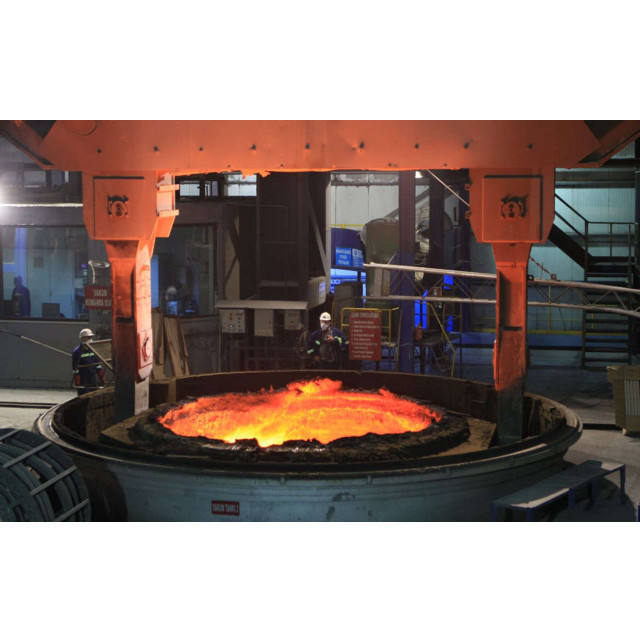

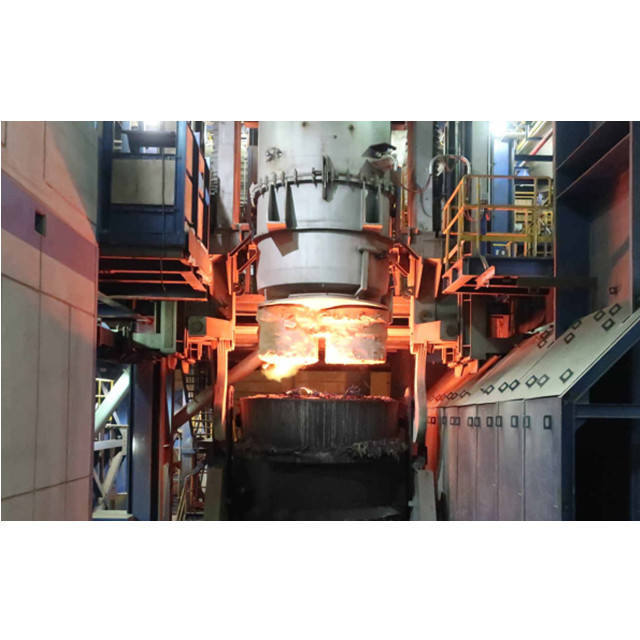

The Ladle Refining Furnace is designed to refine molten steel from primary melting furnaces (electric arc furnace, induction furnace, converter, etc.), while also adjusting molten steel temperature and serving as a buffer in the production process. Considered essential for optimal production lines (primary melting furnace + LF + CCM), it is widely used for refining various steel grades including ball bearing steel, alloy structural steel, tool steel, and spring steel.
| Ladle Rated Capacity (ton) | Ladle Diameter (mm) | Transformer Rated Capacity (KVA) | Electrode Diameter (mm) | Electrode Distribution Circle Diameter (mm) | Molten Steel Temperature Raising Speed (°C/min) |
|---|---|---|---|---|---|
| 20 | 2200 | 3150 | 200 | 500 | 2-3 |
| 40 | 2900 | 6300 | 350 | 650 | 2-3 |
| 60 | 3100 | 10000 | 350 | 650 | 2-3.5 |
| 70 | 3200 | 12500 | 400 | 700 | 2-3.5 |
| 100 | 3400 | 18000 | 400 | 700 | 2-3.5 |
| 150 | 3900 | 20000 | 450 | 800 | 2-3.5 |
